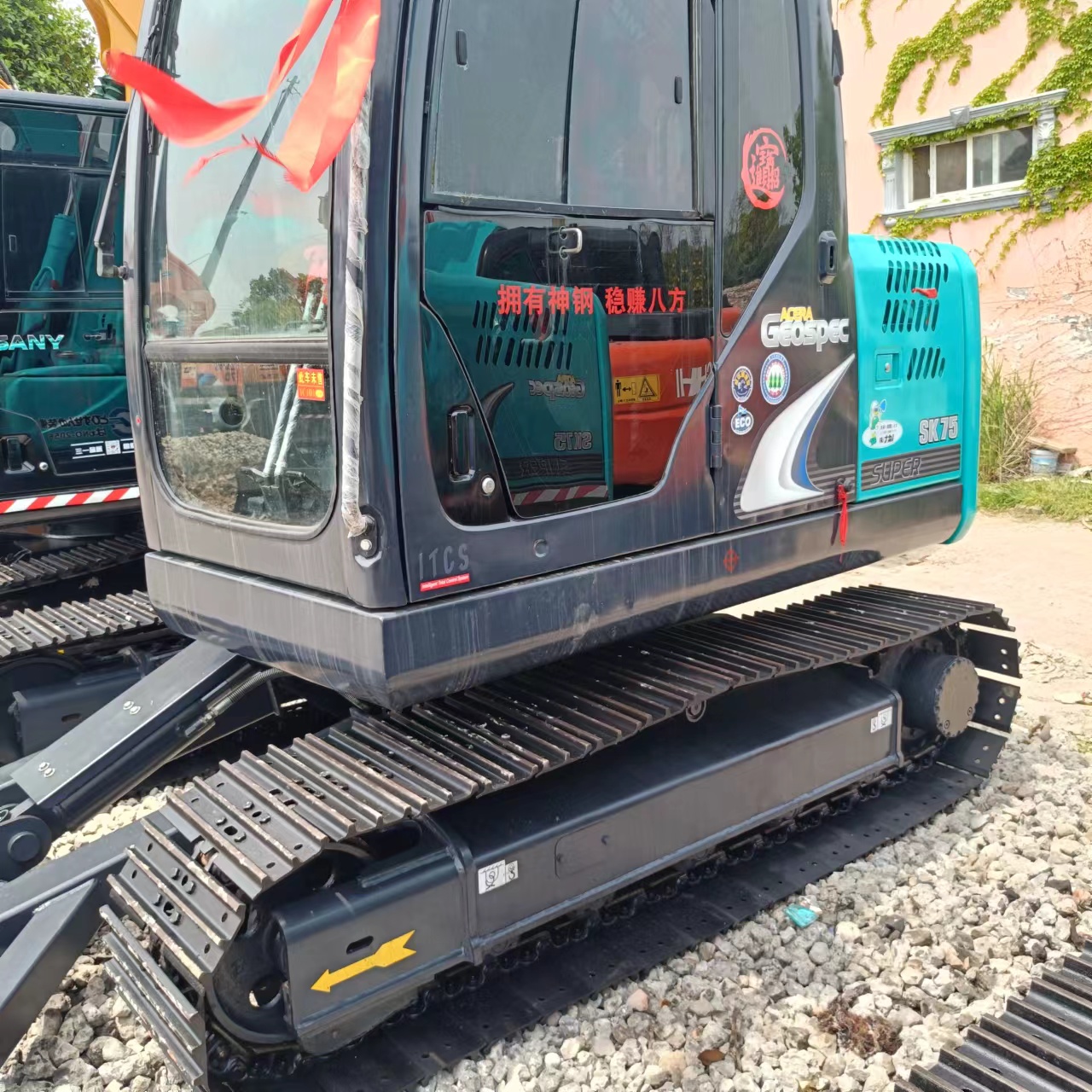

Kobelco SK75 Used Excavator Equipment 7.5 Ton Heavy Duty Construction Equipment

Used 7.5 Tons KOBELCO Excavator

Used Kobelco SK75 Crawler Excavator 7.5Ton Heavy Duty High Working Efficiency Construction Equipment With Gearbox Core Component


• The KOBELCO SK75 is a 7.5-ton class hydraulic excavator, engineered for middle-scale mining, quarrying, and heavy construction projects. A versatile, urban-friendly excavator combining compact size, power, and Kubota’s reliability.  A compact powerhouse combining urban maneuverability, Kubota reliability, and eco-efficiency. Kobelco’s silent design (reduced noise/vibration) and durable undercarriage make it a top choice for sensitive urban environments.

• If you're interested in our products and want to know more details about us , welcome to contact me any time .



Product Specificaton

• 1. General Data

              Operating Weight:Standard configuration: 7,400 kg
              Maximum (with counterweight): 7,800 kg
              Transport Dimensions:Length: 5.9 m (stick retracted)
              Width: 2.3 m (standard shoe)
              Height: 2.6 m (cab top)

• 2. Engine & Emissions

              Model: Yanmar 4TNV98T turbocharged diesel
              Power: 42.5 kW (57 HP) @ 2,000 rpm
              Emission Compliance: Tier 4 Final (SCR + DPF)
              Fuel Tank: 90 liters

• 3. Hydraulic System

              Pump Type: Dual variable displacement axial piston pumps
              Flow Rate: 2 × 36 L/min (total 72 L/min)
              System Pressure: 34.3 MPa (main circuit relief)
              Control System: Load-sensing hydraulics with independent travel circuit

• 4. Performance Metrics

              Digging Depth: 4.1 m (with standard 2.5m arm)
              Max Reach: 6.3 m (ground level)
              Bucket Capacity: 0.28–0.32 m³ (SAE standard)
              Swing Speed: 10 rpm

• 5. Undercarriage & Stability

              Track Shoe Width:Standard: 450 mm (steel)
              Optional: 500 mm (rubber)
              Ground Pressure: 35 kPa (standard shoe)

• 6. Advanced Features

             ICT System: Optional telematics for real-time monitoring
             Eco Mode: Reduces fuel consumption by 12–15%
             Auto-Idle: Cuts engine RPM during inactivity

• 7. Attachments

            Auxiliary Circuit: Standard 2-line (optional 3-line)
            Compatible Tools:Breakers (e.g., HB70G, 650 kg class)
                                           Tilting buckets, augers, grapples


Company production


Shanghai Litong Machinery Equipment Co., Ltd. is located in Qingpu District, Shanghai, China, and has set up a branch office in Hefei, Anhui.The company has been established for more than ten years. Our customers are all over the world and we have a good reputation .
We sell excavators, loaders, graders, cranes,forklifts and all kinds of accessories and more. We cooperate with brands such as Komatsu, Hitachi, Volvo, Kobelco, Kubota, Carterpillar, Sany and so on.
Selling machines we are professional.We will do our best to make our customers satisfied with our products and services.
Because of profession, we are trusted.
Because we are trusted, we are more and more professional.
